Fume hood is the most commonly used exhaust equipment in the laboratory for the part area air ventilate, it is many variety, due to the different structure, use condition is different, the ventilation effect is not the same. The performance of the fume hood, mainly depends on the speed of the moving the air of the fume hood.
Laboratory ventilation is an indispensable part of in the design of laboratory. In order to make the laboratory staff don't inhale or pharynx into some unknown toxic and can cause or toxicity of chemicals and organisms, the laboratory should have good ventilation. To prevent some of the steam, gas and particles (smoke, soot, dust and air suspension) absorption of pollutants must be used fume hoods and ventilation hood or local ventilation method to remove.

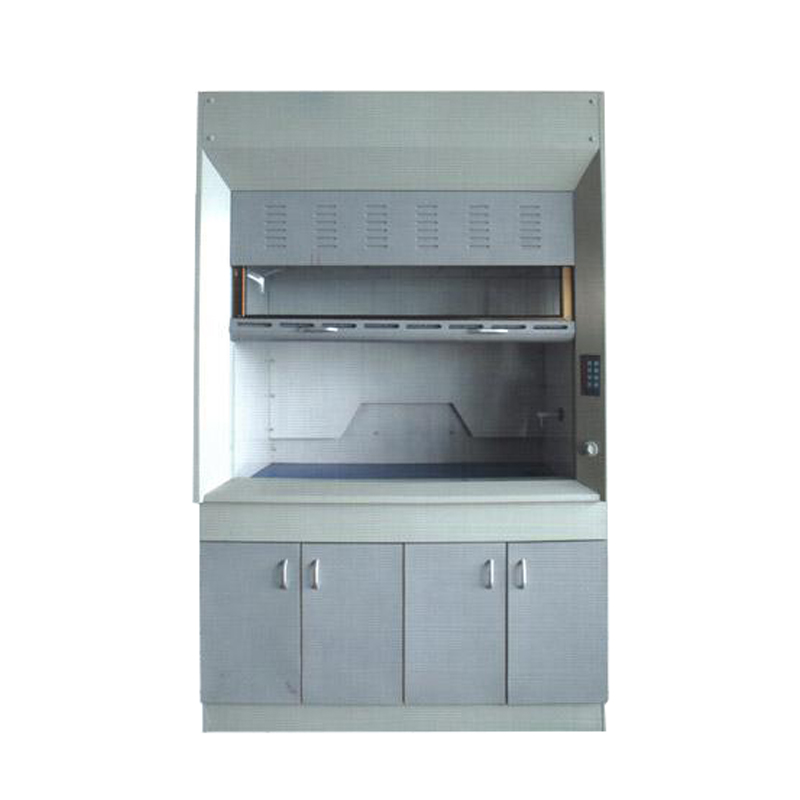

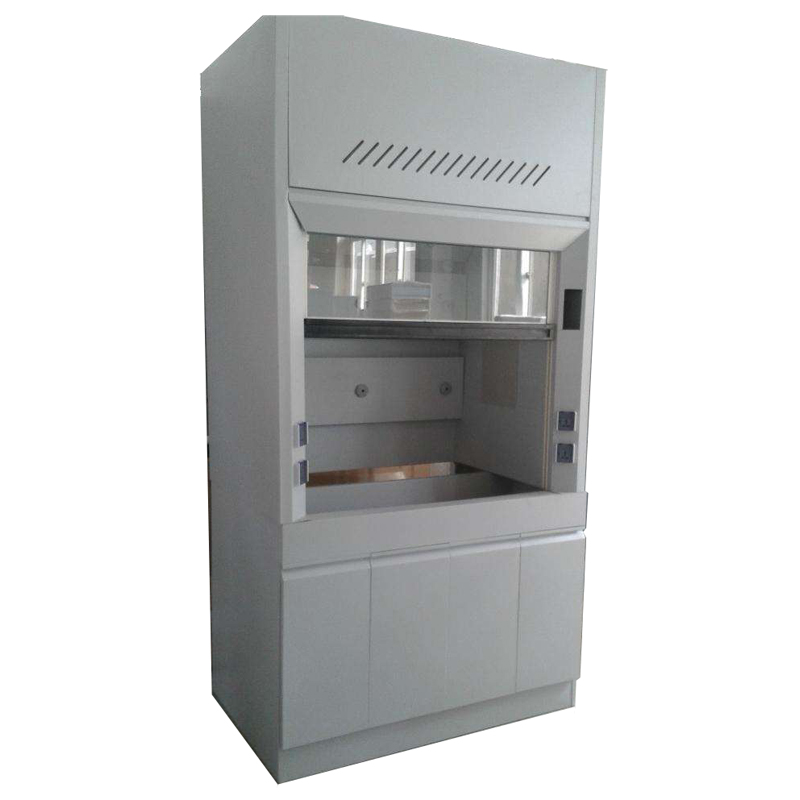

Item Name | Fume Hood |
Size: | 2350*1200*850mm or customized size |
Types: | Bench-top Fume Hood ; Walk-In Fume Hood ;PP Fume Hood;SS Fume Hood; Steel Fume Hood |
Lining : | Chemical & Heat Resistant ,Fire Retardant ,Smooth Finish ,Easily cleanable panels made of durable phenolic integral work walls (5mm thick ) |
Sash Openning | 0-800 mm. |
Average face velocity: | 0.5m/s |
Front Top Panel: | Easily openable hinged top panel for easy access to Flow Control Valve and Electrical Lighting fixtures for maintenance . |
Work Top : | 12.7mm phenolic top with double thicked edges ,15mm epoxy resin worktop ,30mm ceramic worktop ,30mm granite worktop |
Windows Glass : | 5mm toughened glass |
Light: | 20W ×1 ,at least 400 LUX |
Exhaust duct: | glass steel tube of PVC tube ,corrosion resistance |
Base : | SS304 |
Socket: | 1.5amp switch with three sockets |
Technical data : | noise ≤ 60 dB (international) :wind speed three-section exhaust |
